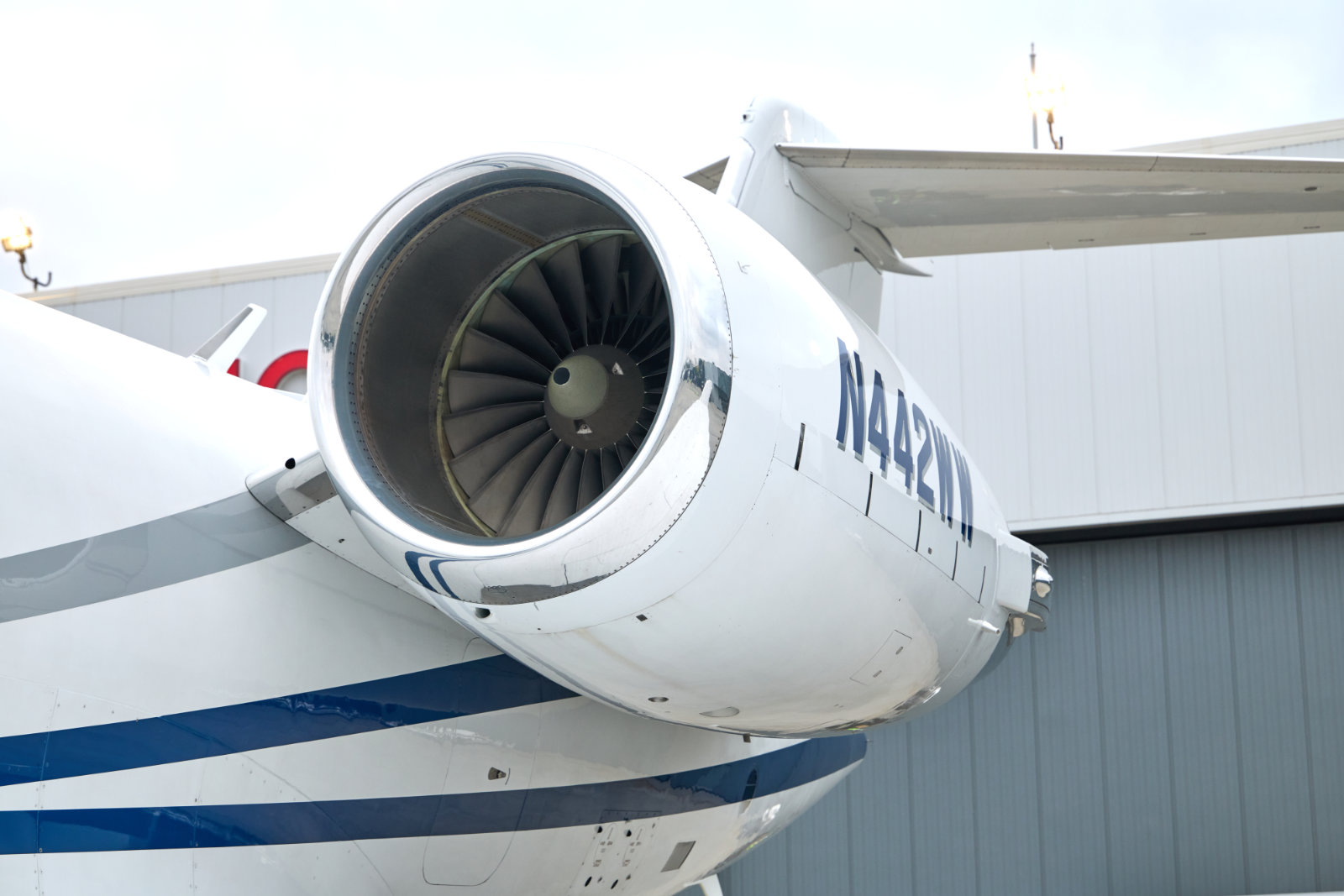

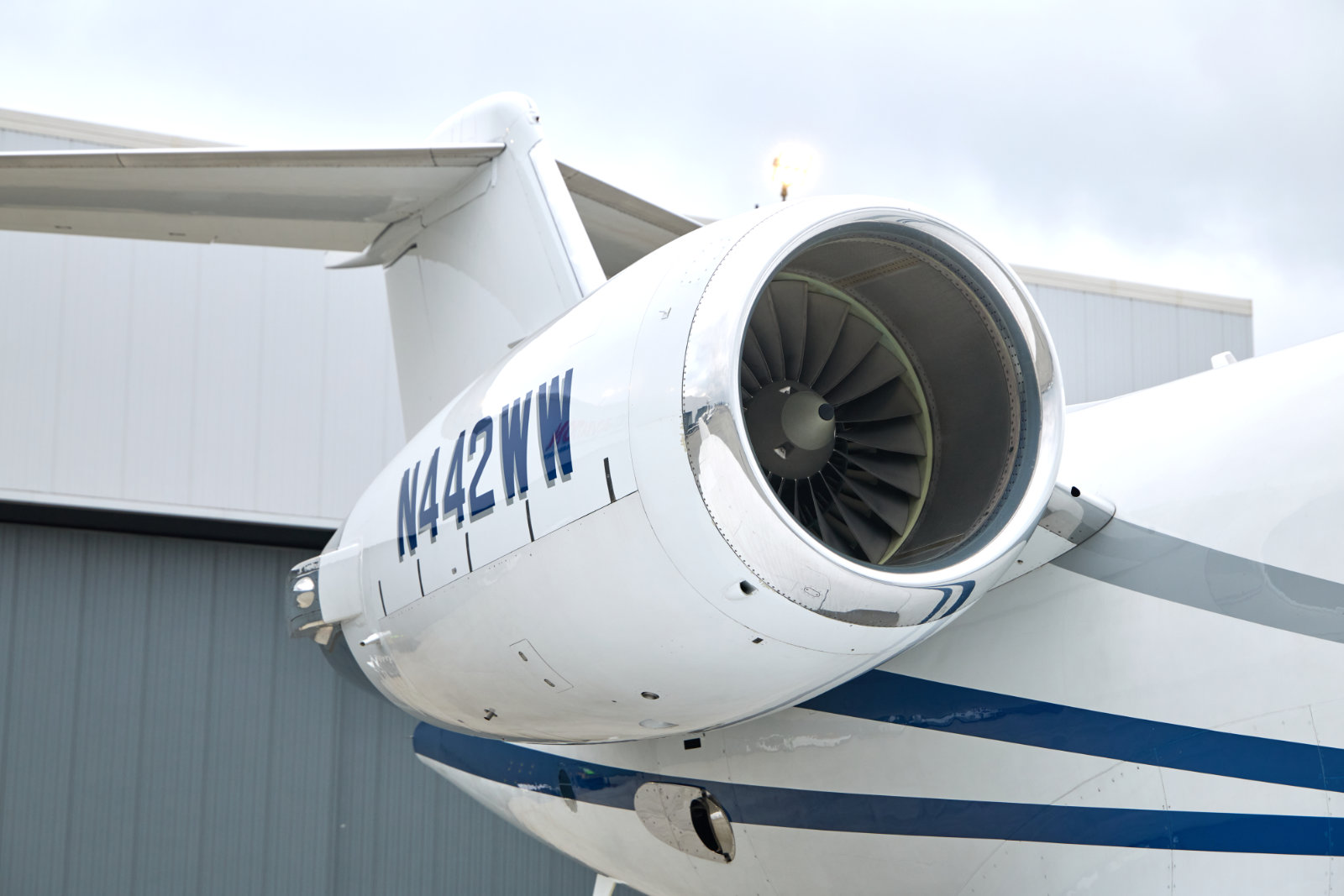

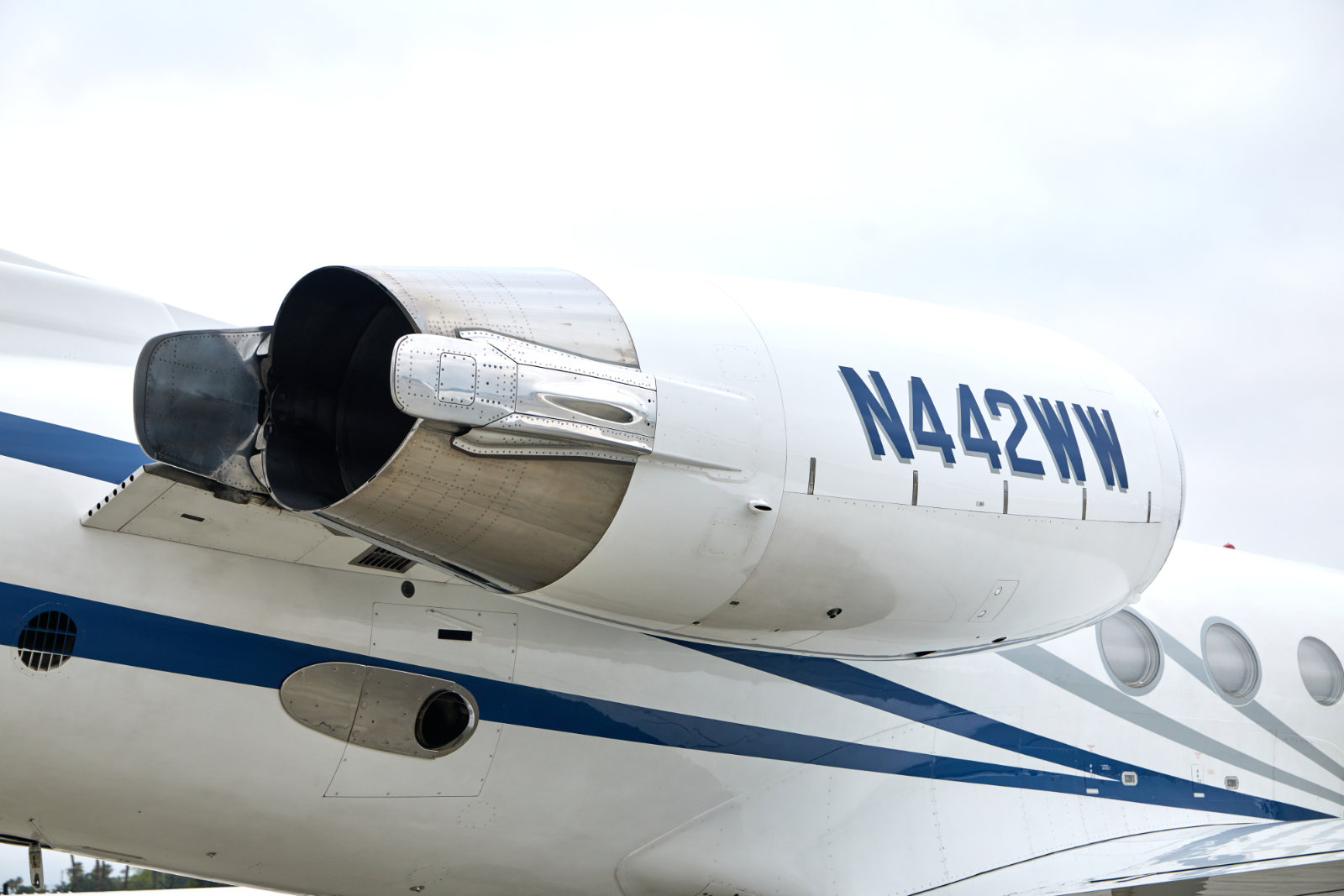

Engines

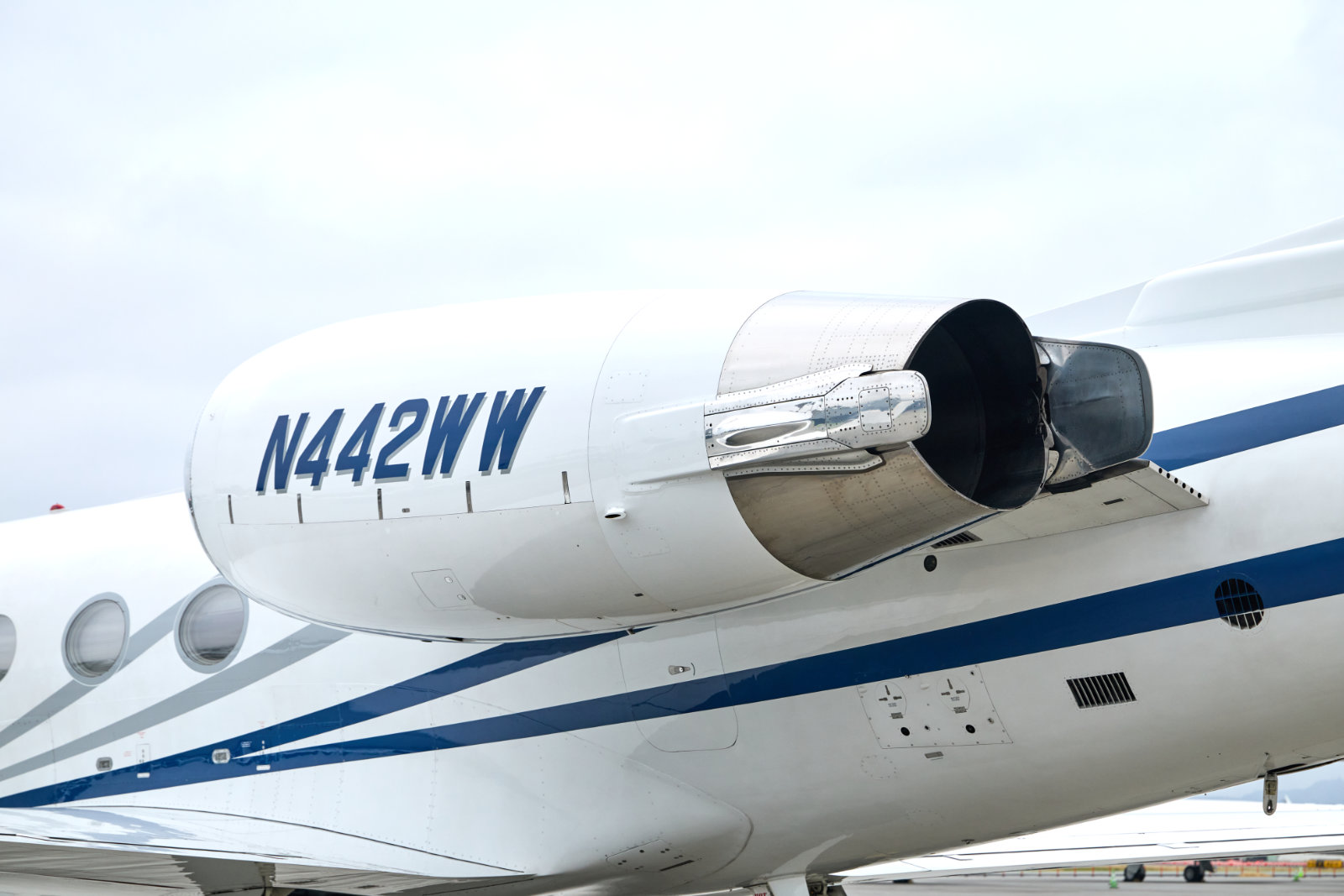

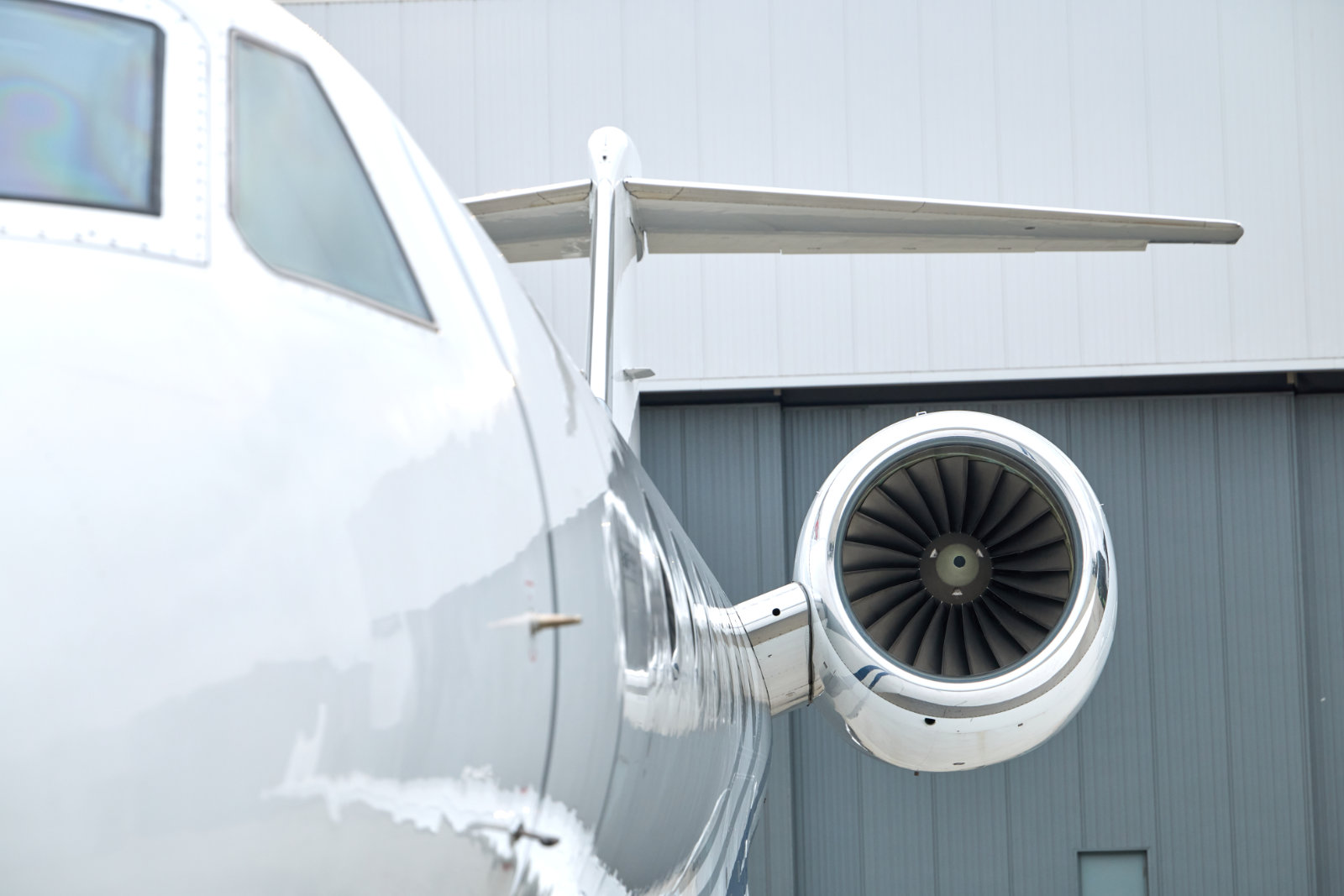

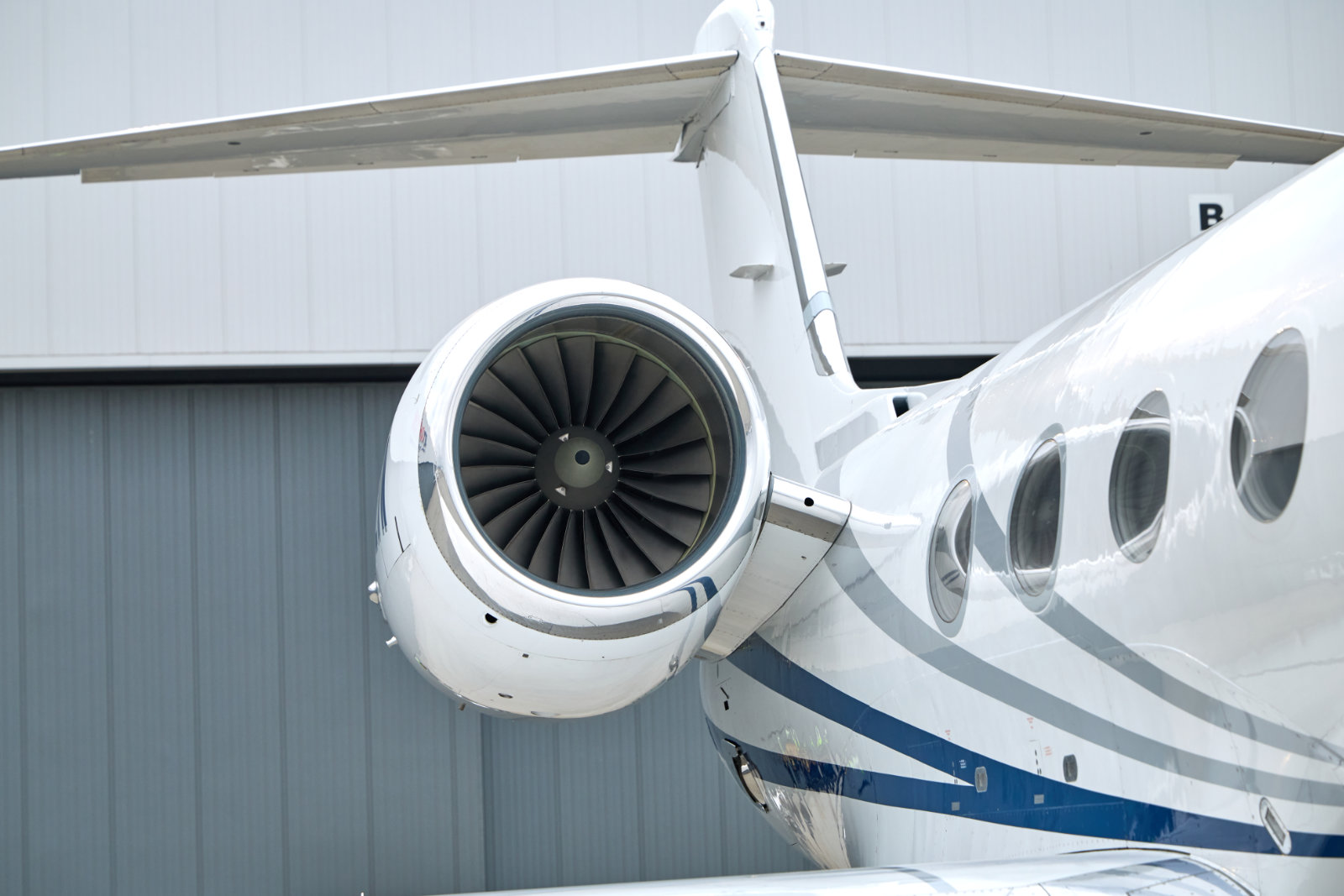

- Engine Model Rolls Royce TAY611-8
- Engine Serial Numbers 18013 18014
- Total Time Since New (hrs) 9,938 9,854
- Total Cycles 5,326 5,284
- Time Since Overhaul 3,339 2,200
APU Details
- APU Model Honeywell GTCP36-150(G)
- APU Serial Number P-870-C
- Total Time Since New (hrs) 5,928
Aircraft Highlights
- Fully enrolled on Programs
- L5 WiFi
- FANS 1/A, CPDLC
- Primus Elite DU-885AF w/Synthetic Vision
- Tailwind 500 Satellite TV System
Programs
- Rolls Royce Corporate Care
Hourly Rate: $406.62 per Engine
Minimum Utilization: 400 Hours - APU – Honeywell MSP
Hourly Rate: $167.99
Minimum Utilization: 250 Hours - Honeywell Avionics/Mechanical (HAPP/MPP)
Hourly Rate: $285.48
Minimum Utilization: 400 Hours - Collins CASP
Hourly Rate: $132.10
Minimum Utilization: 400 Hours - Corporate Jet Support Briteparts
Hourly Rate: $168.13
Minimum Utilization: 400 Hours

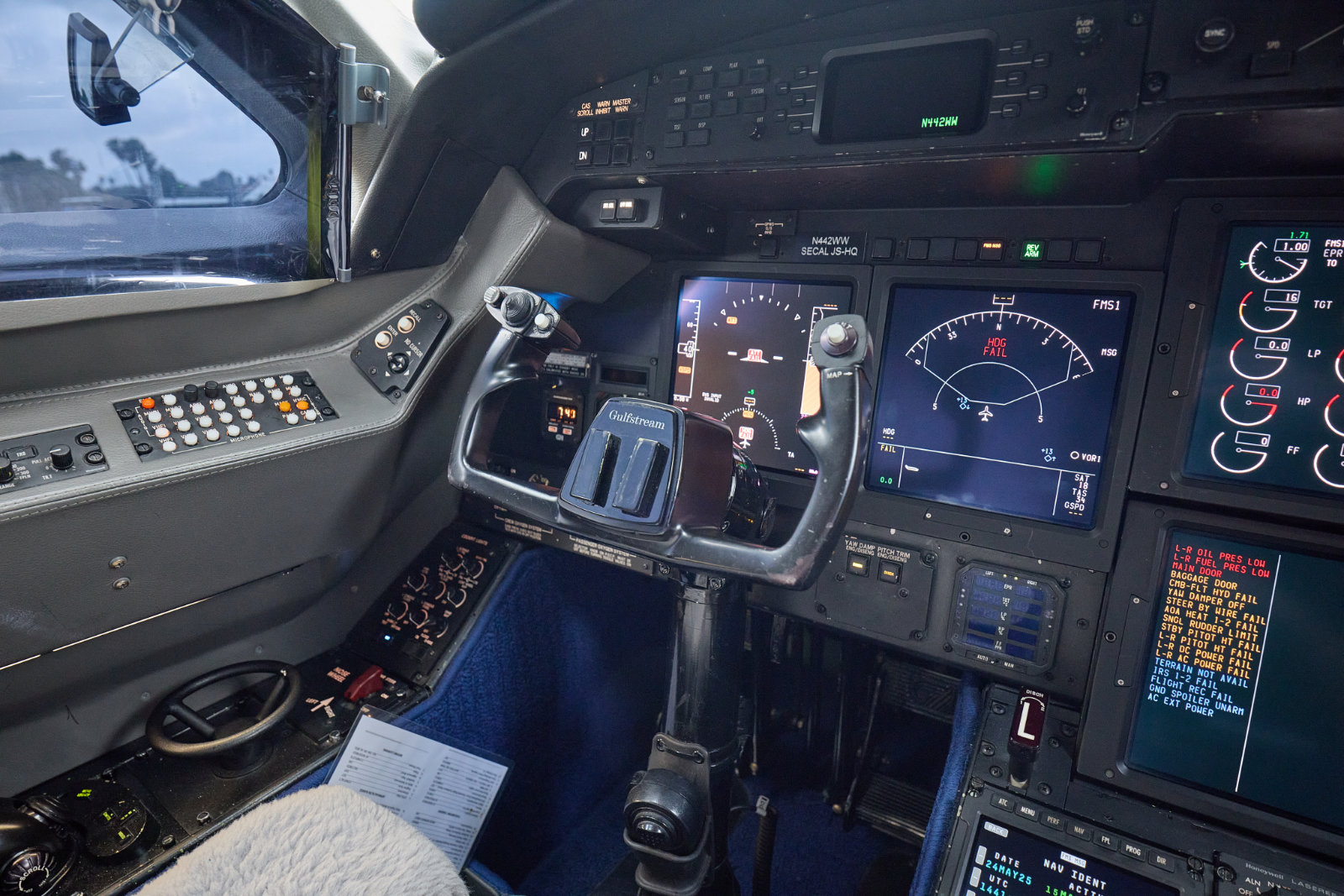

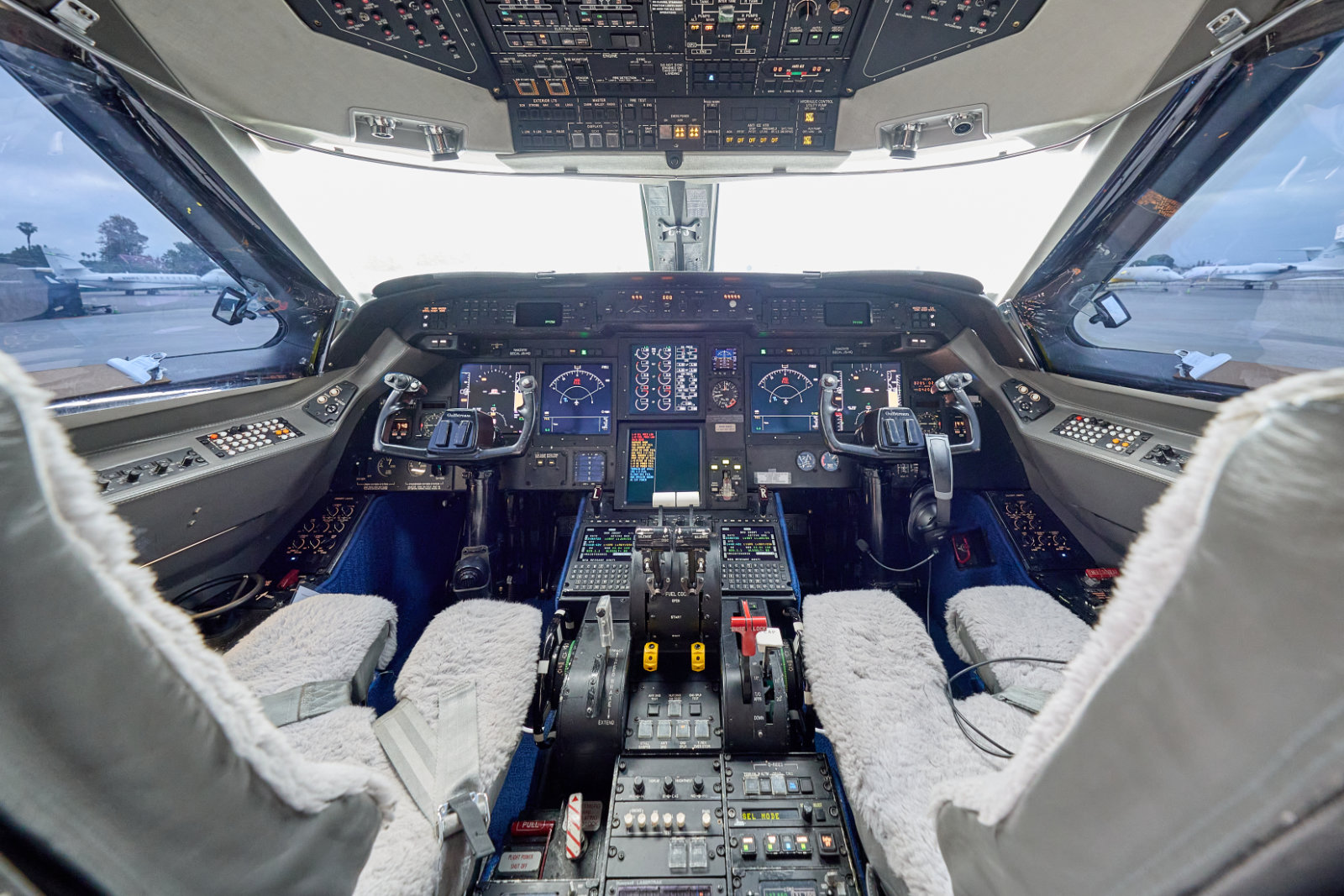

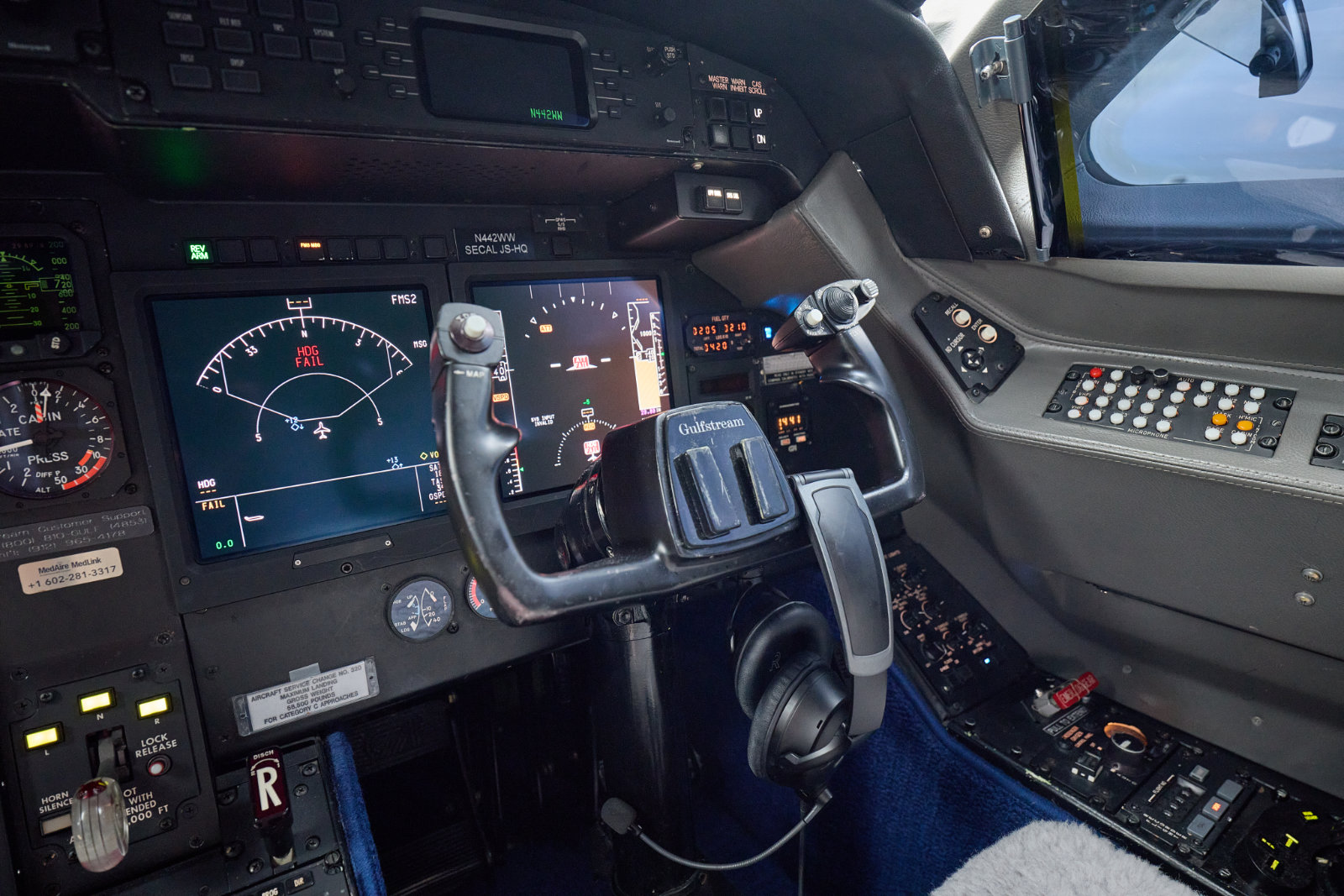

Avionics
- Honeywell Primus Elite
- Honeywell DU-885 Liquid Crystal Displays
- Triple Collins VHF-422D w/8.33 KHz spacing
- Dual Collins HF-9034 w/5 channel SELCAL
- Dual Honeywell NZ-2000 w/6.1.1 software
- Dual Honeywell CD-830 Control Display Units
- Dual Honeywell HG-2021 GPS
- SAT Iridium & VHF AFIS
- Dual Collins TDR-94D w/Flight ID & Enhanced Surveillance
- Triple Honeywell LASEREF IV
- Dual Honeywell SPZ-8400 IFCS
- Fairchild FA2100 CVR
- Honeywell Primus 880 Color Weather Radar
- FANS over Iridium Datalink
- Dual Collins VIR-432 w/FM Immunity Navigation Radios
- Dual Collins DME-442
- Dual Collins ADF-462
- Fairchild FA2100 FDR
- Dual Honeywell SPZ-8400 IFCS Flight Director
- Dual Honeywell RT-300 Radar Altimeter
- Honeywell Mark V EGPWS TAWS
- Honeywell TCAS-2000 TCAS II w/change 7
- DU-885AF Version 2.03 w/XM Weather
Equipment & Inspection Status
Additional Features
- Avance L5 Wi Fi
- FANS 1/A, CPDLC

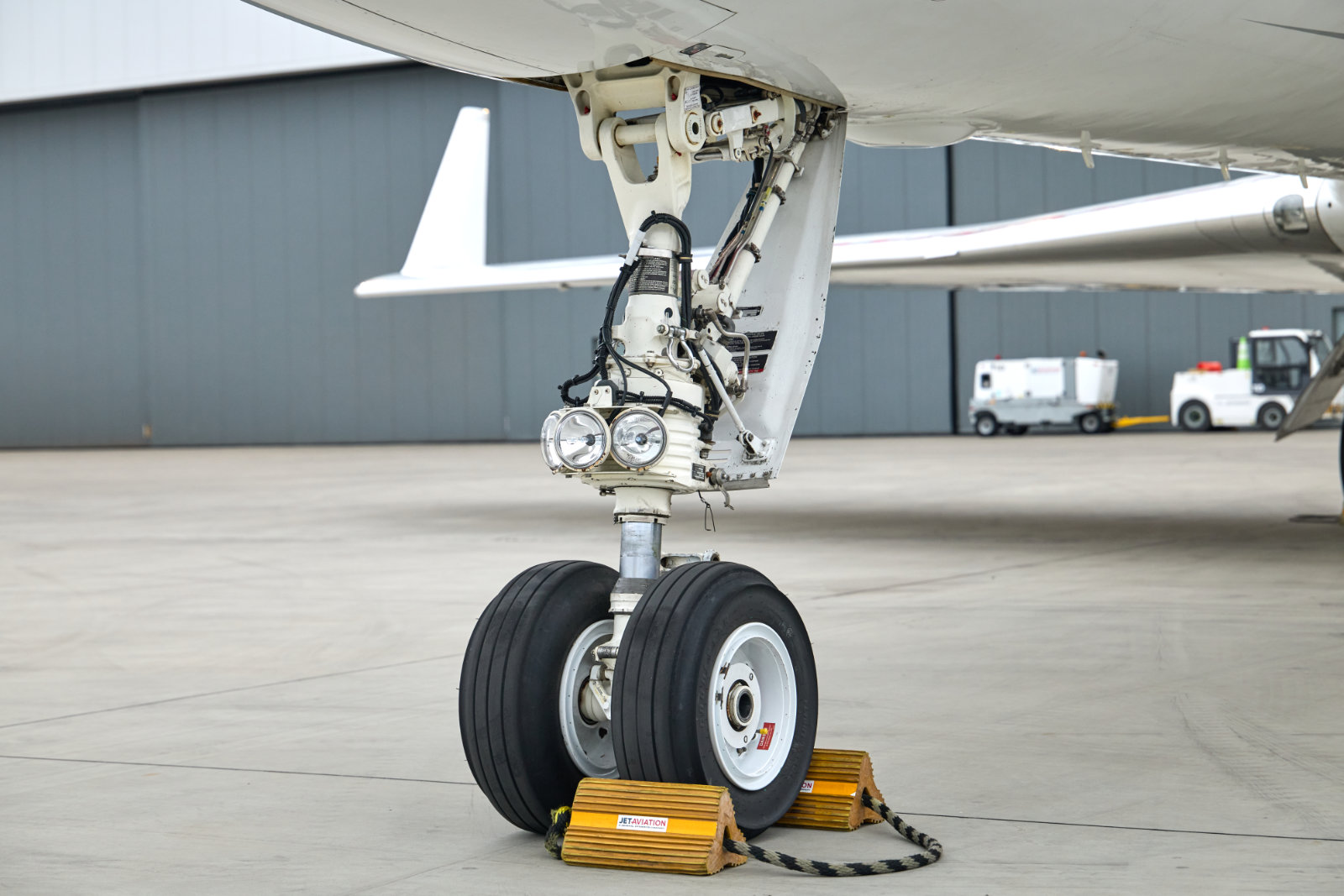

- Whelan Boombeam Taxi & Landing Lights (HID)

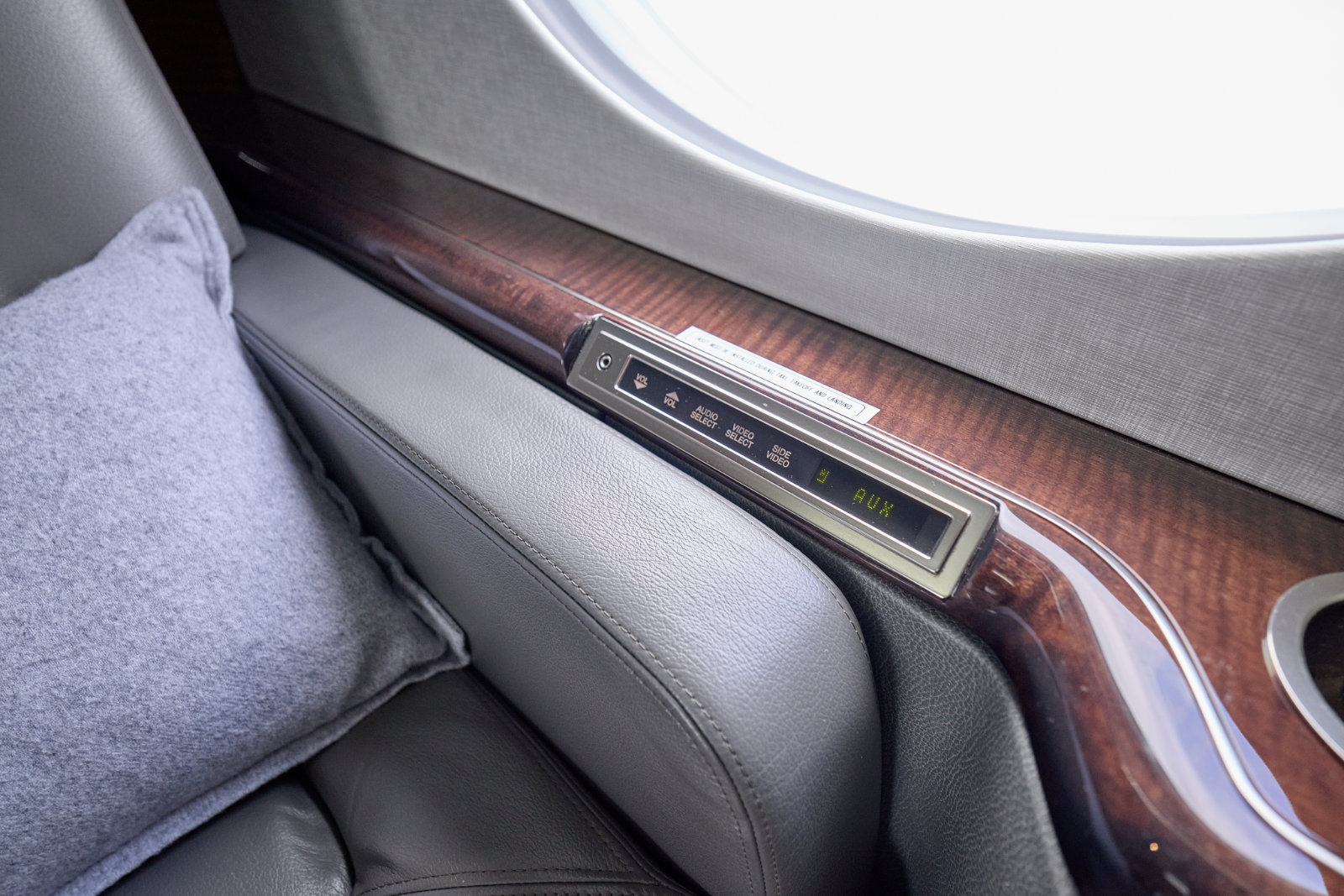

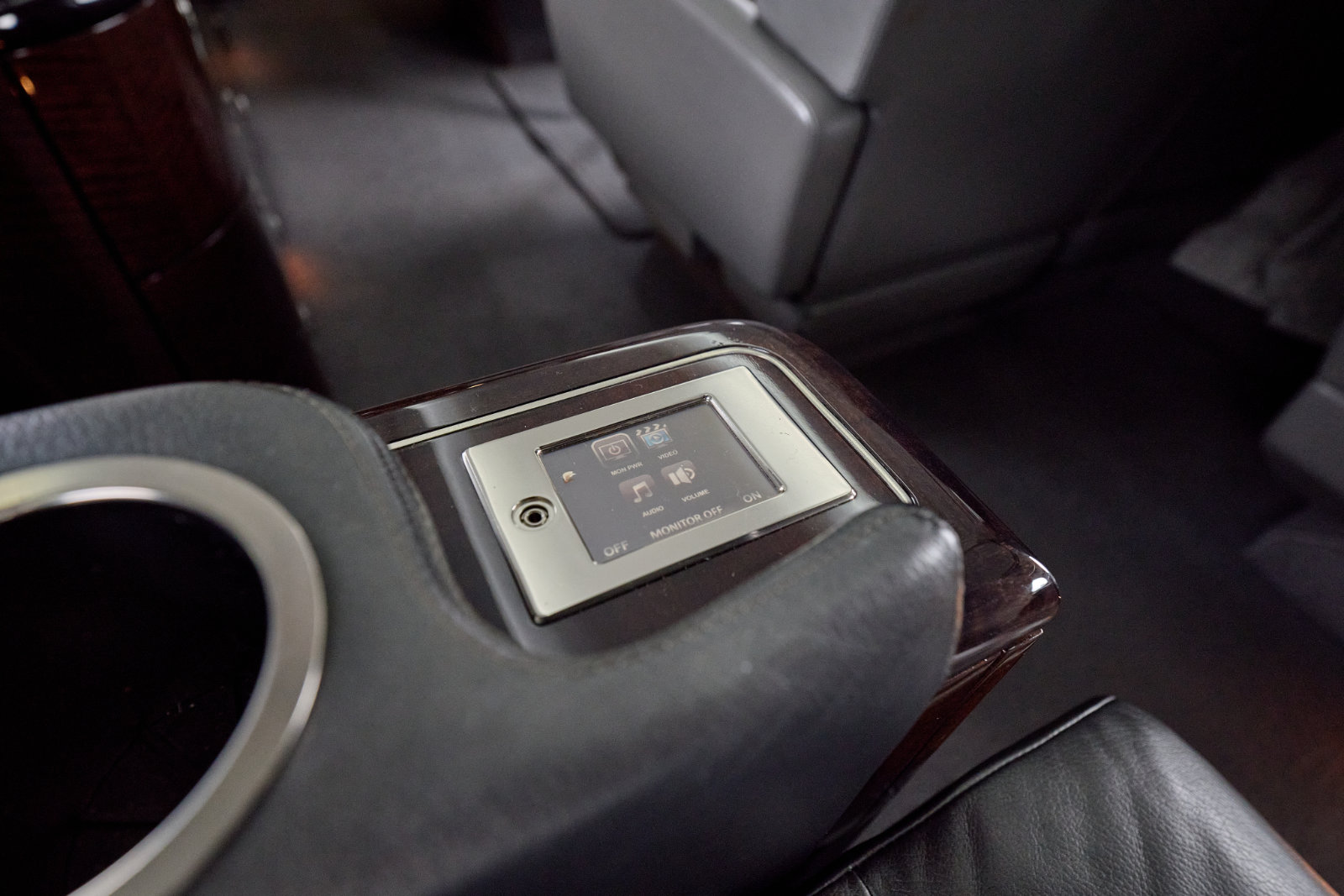

- DPI Labs SmartLink Cabin Management System
- Securaplane External Tail Camera
- Dual 60Hz Cabin Converters
- Tailwind 500 Satellite TV System
Inspection Status
| Inspection | Last | Next |
|---|---|---|
| 1C | March 2025 | March 2026 |
| 2C | July 2024 | July 2026 |
| 3C | August 2023 | August 2026 |
| 4C | July 2024 | July 2028 |
| 6C | August 2023 | August 2029 |
| 8C | July 2022 | July 2030 |
| 12C | July 2017 | July 2029 |
| 16C | July 2017 | July 2033 |

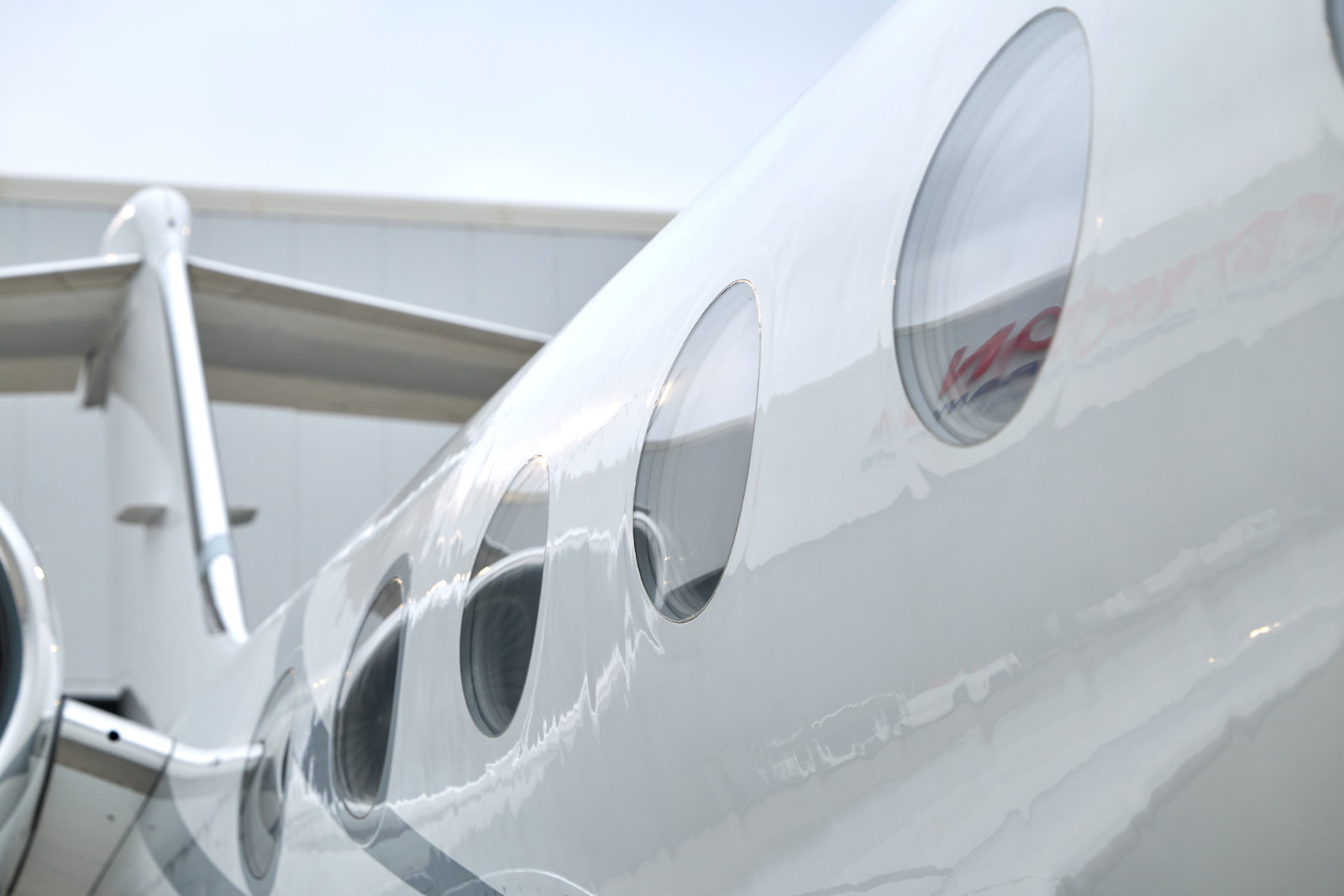

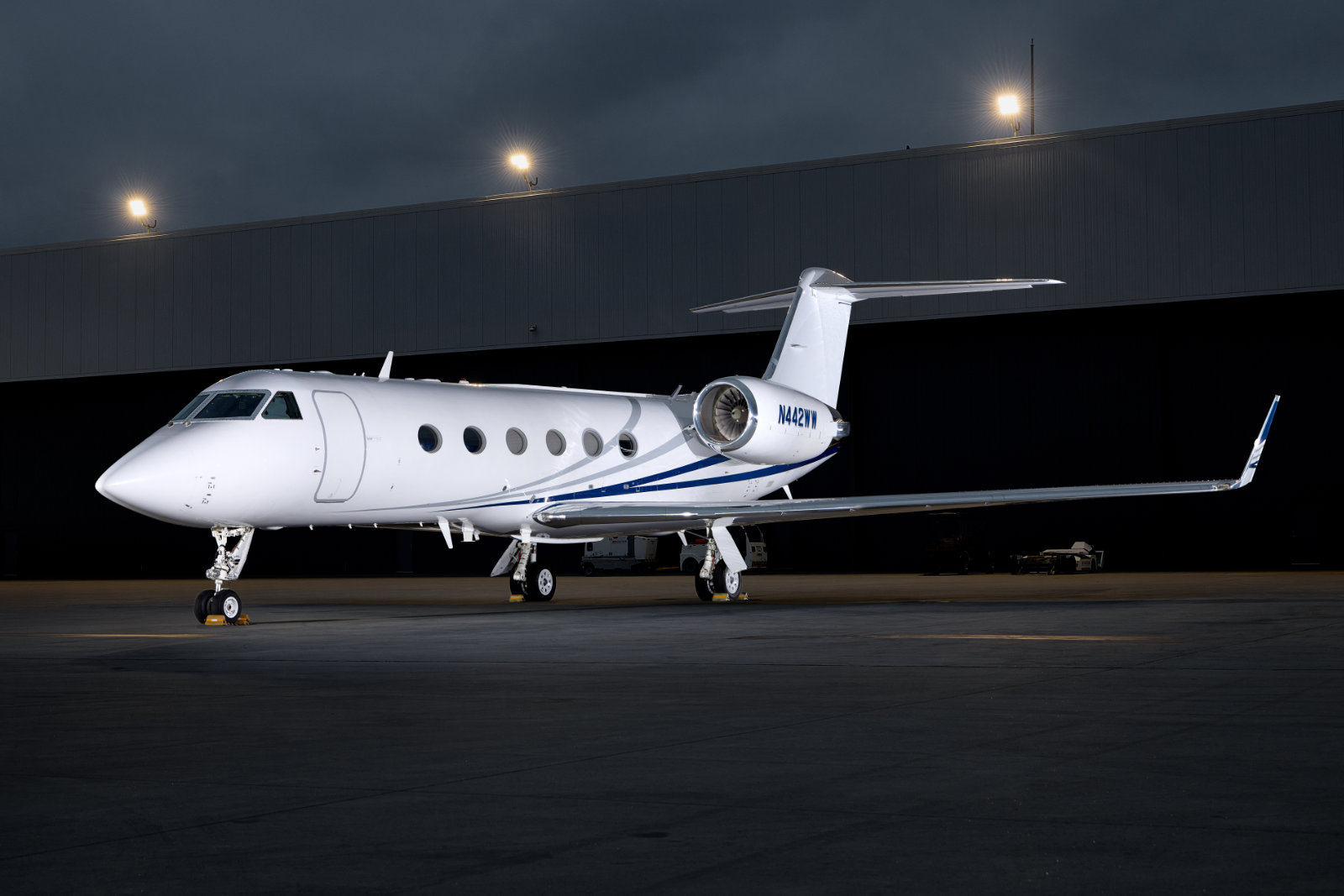

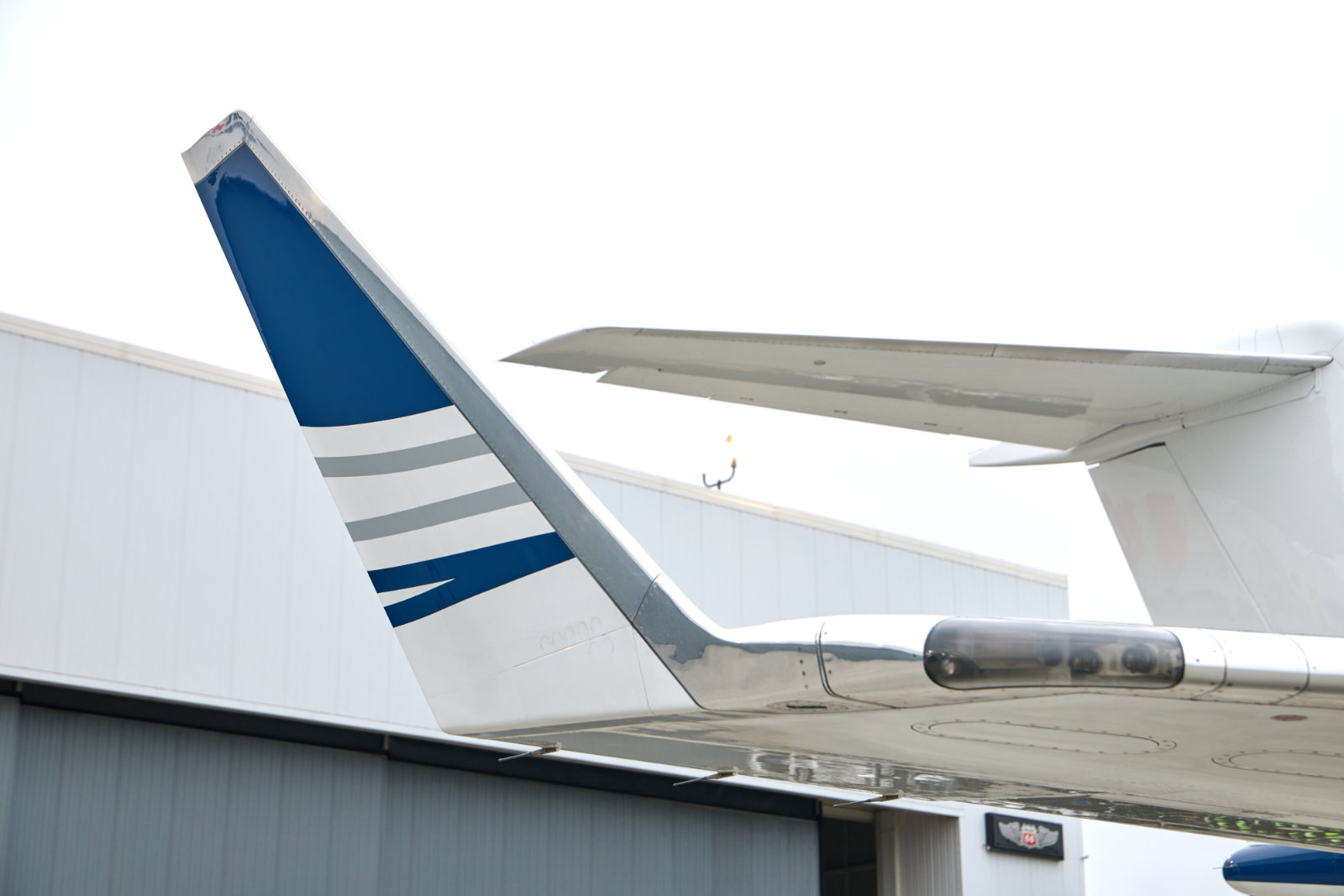

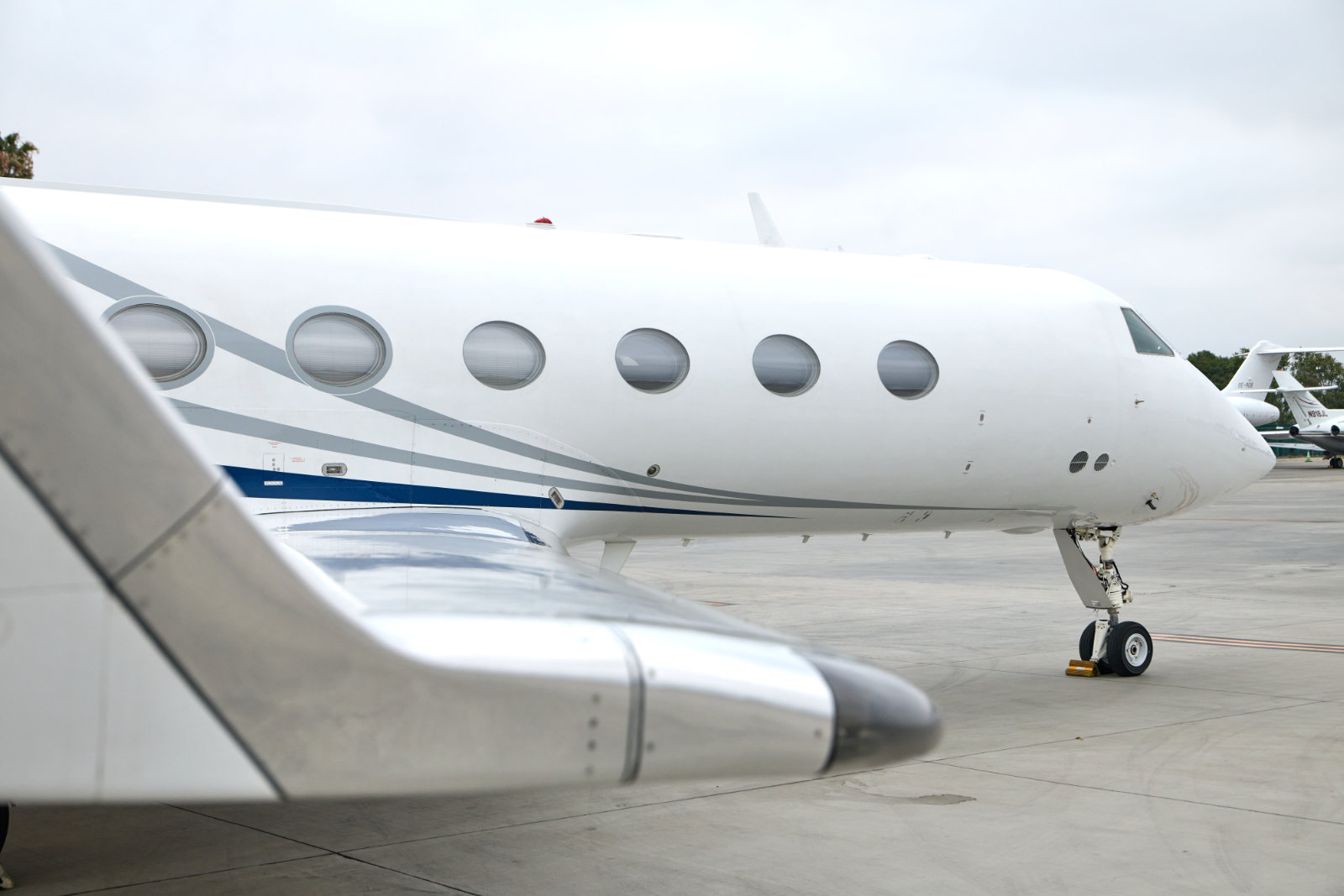

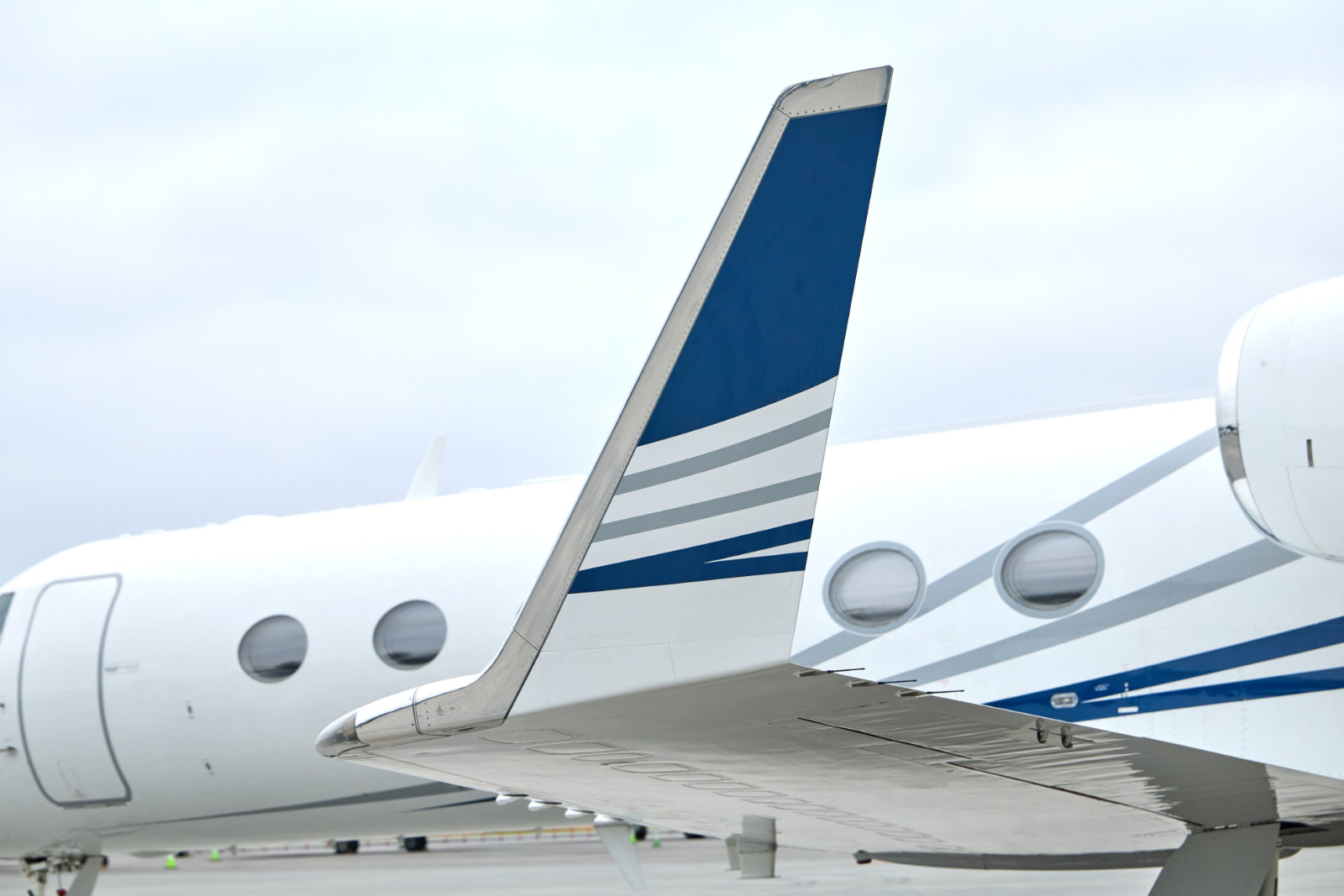

Exterior Features

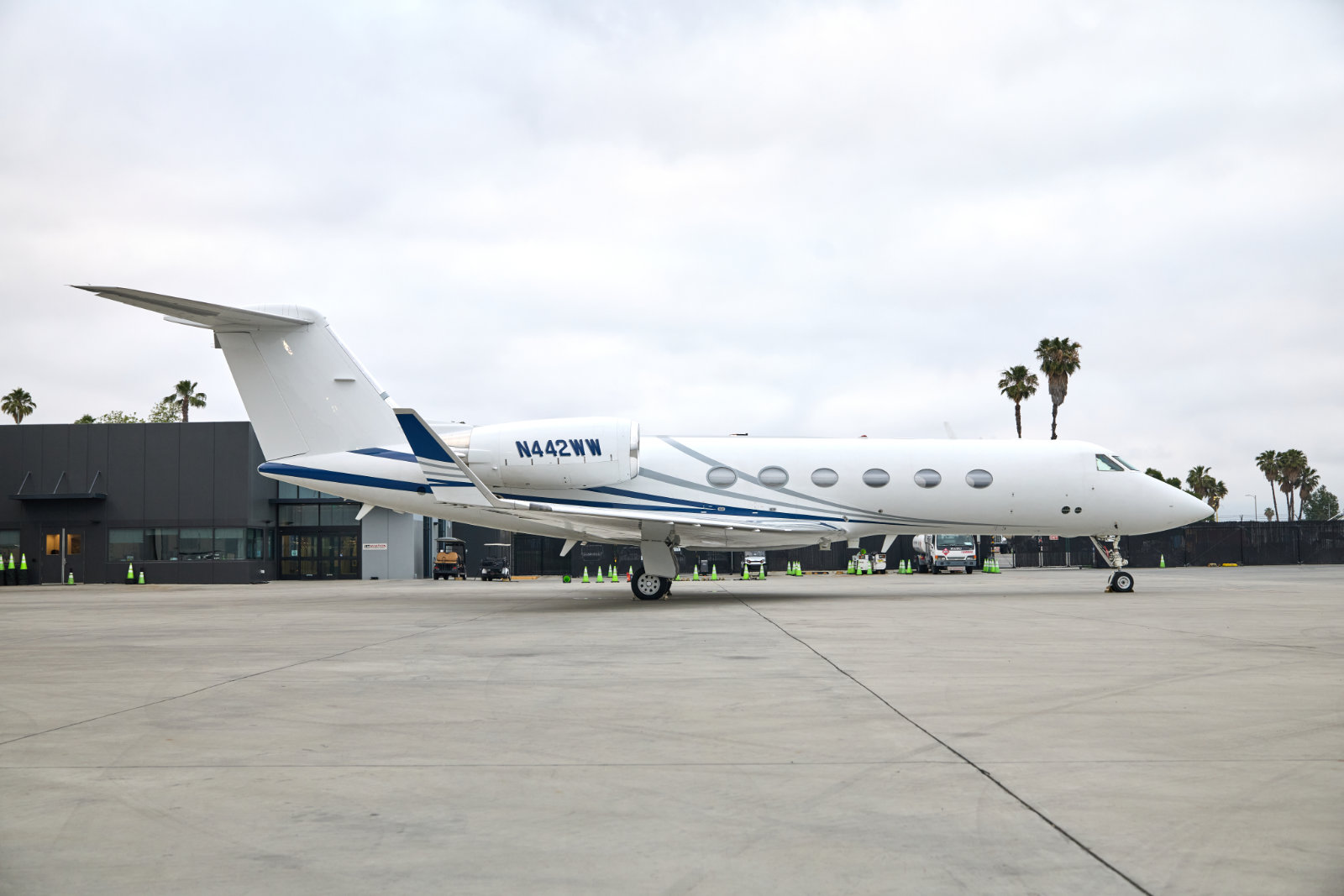

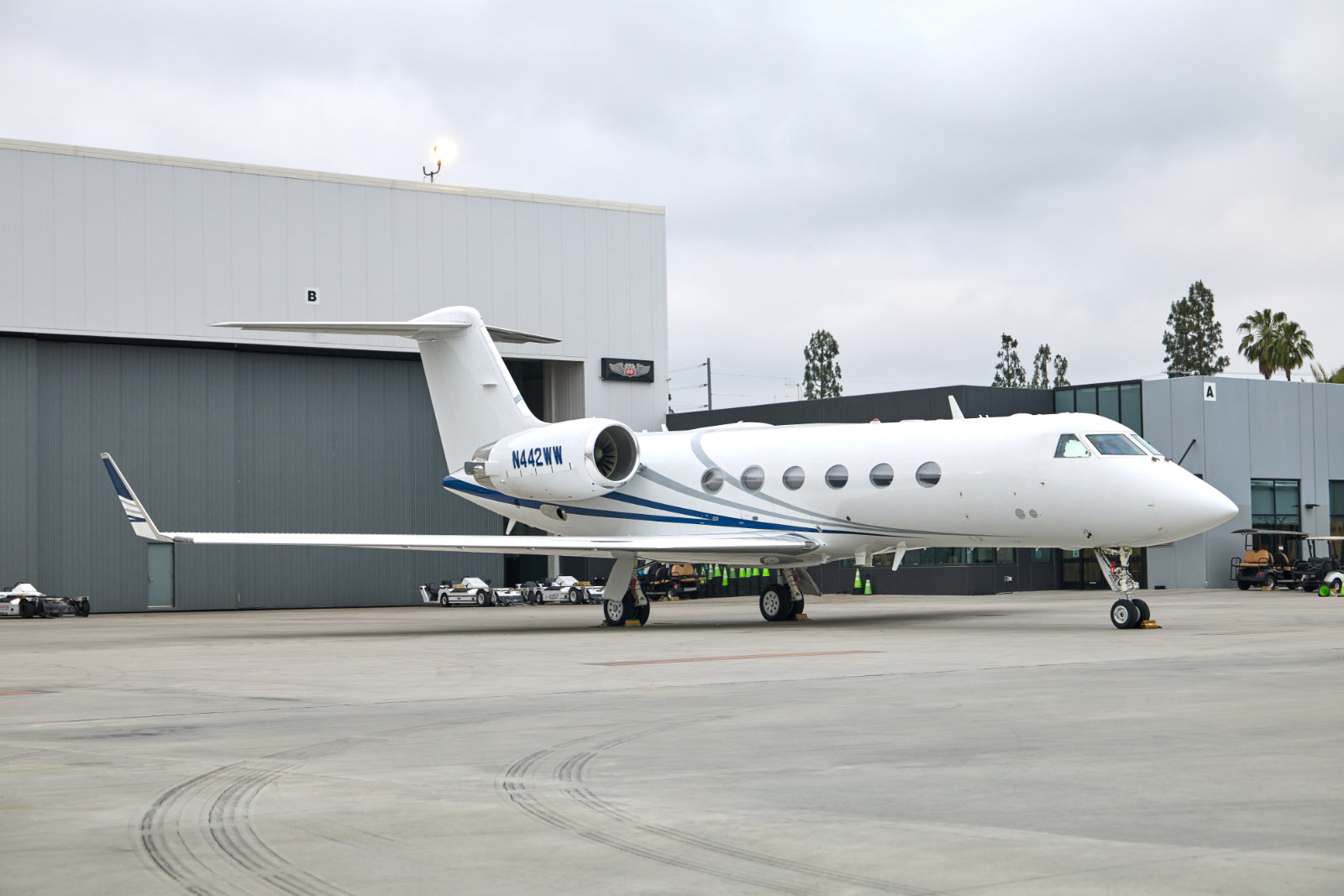

Matterhorn White w/Blue & Gray Stripes
- New Paint June 2015 at West Star

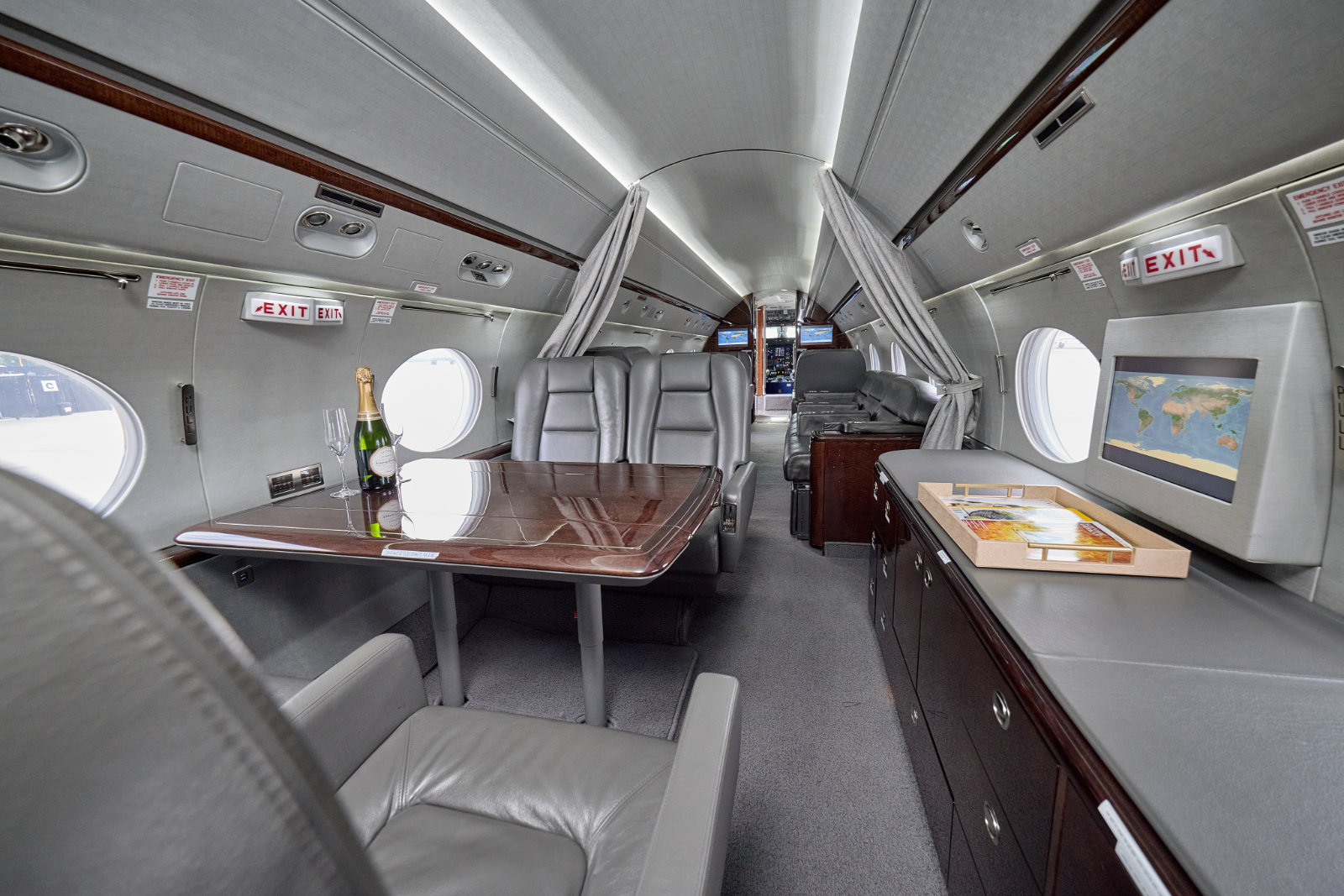

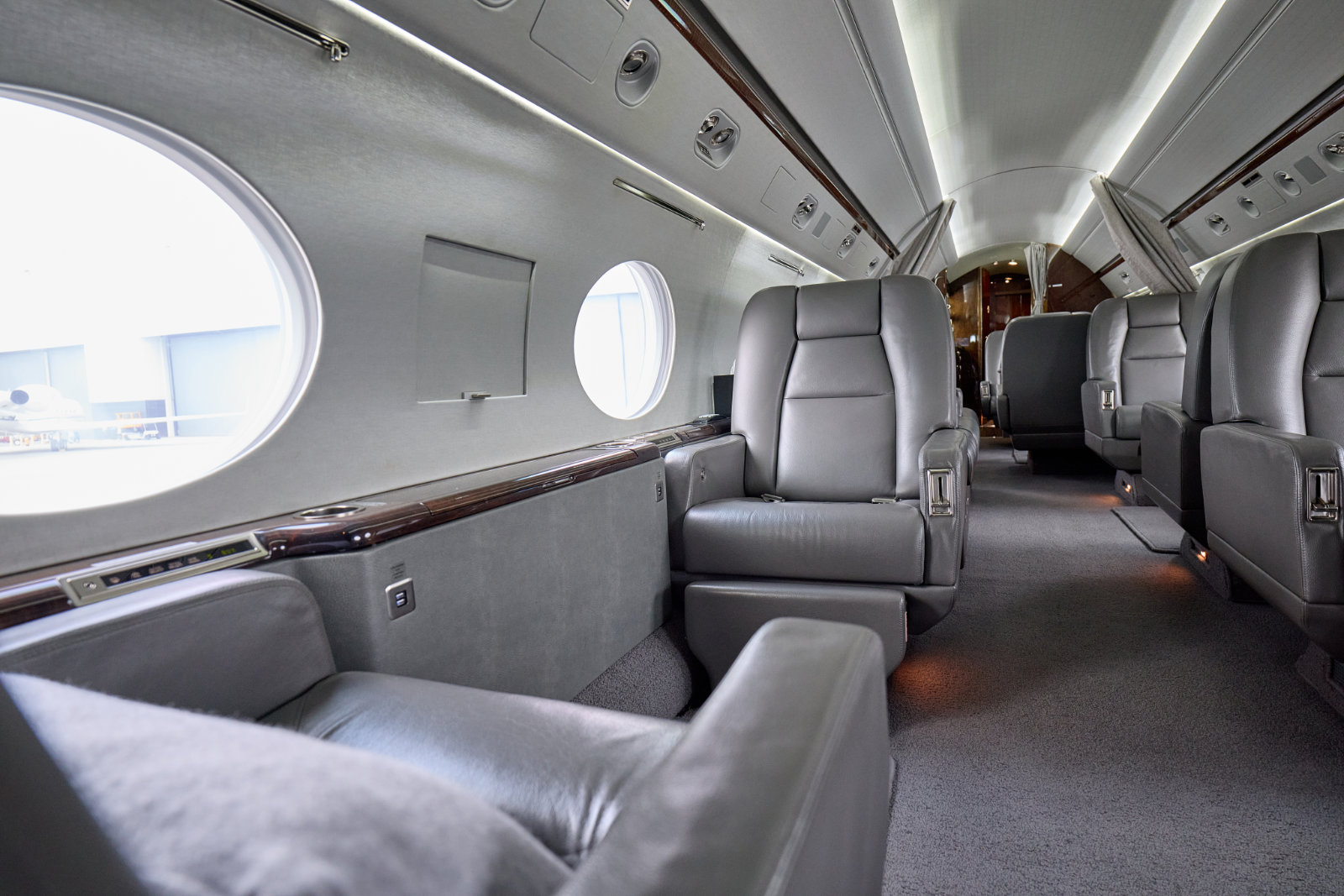

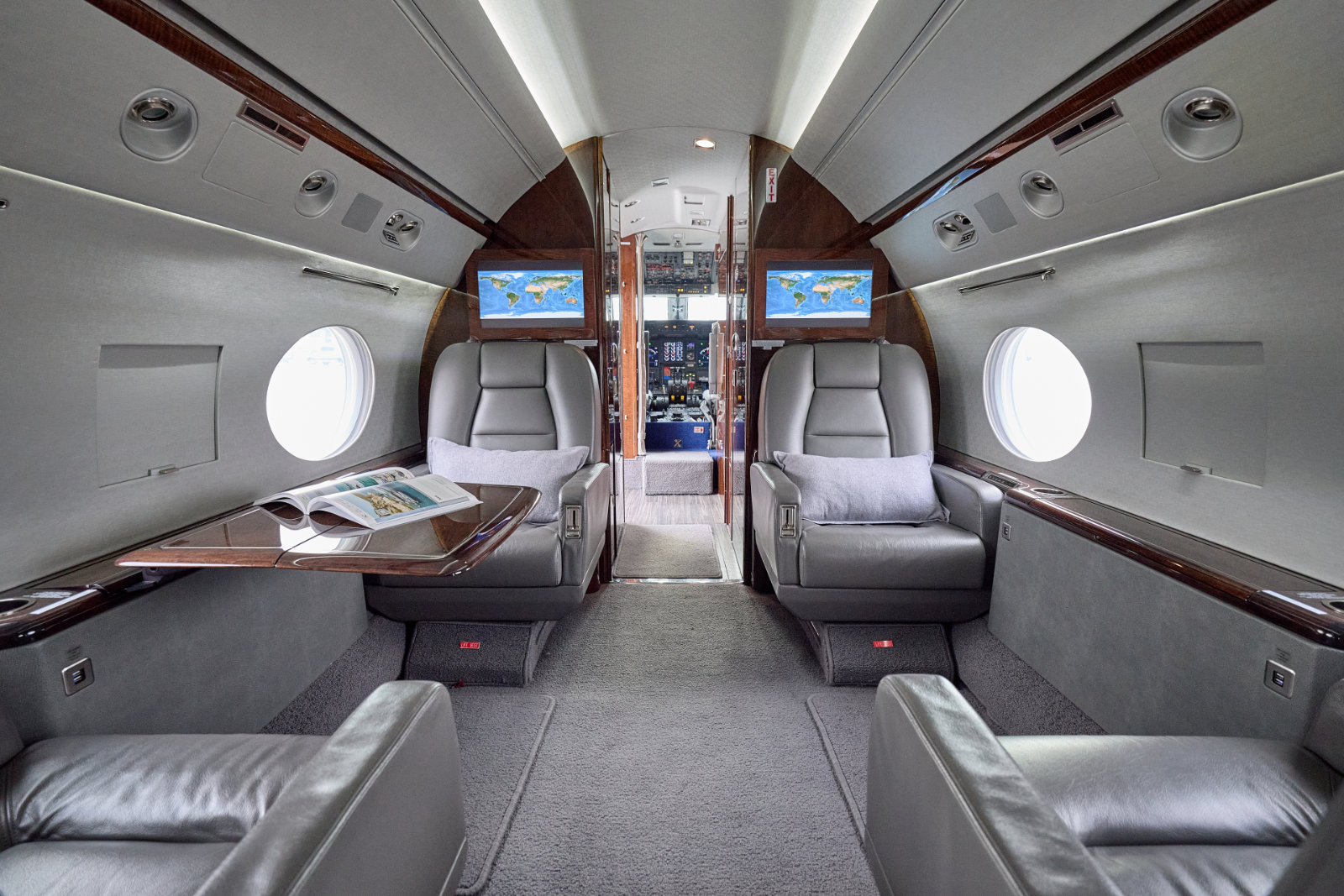

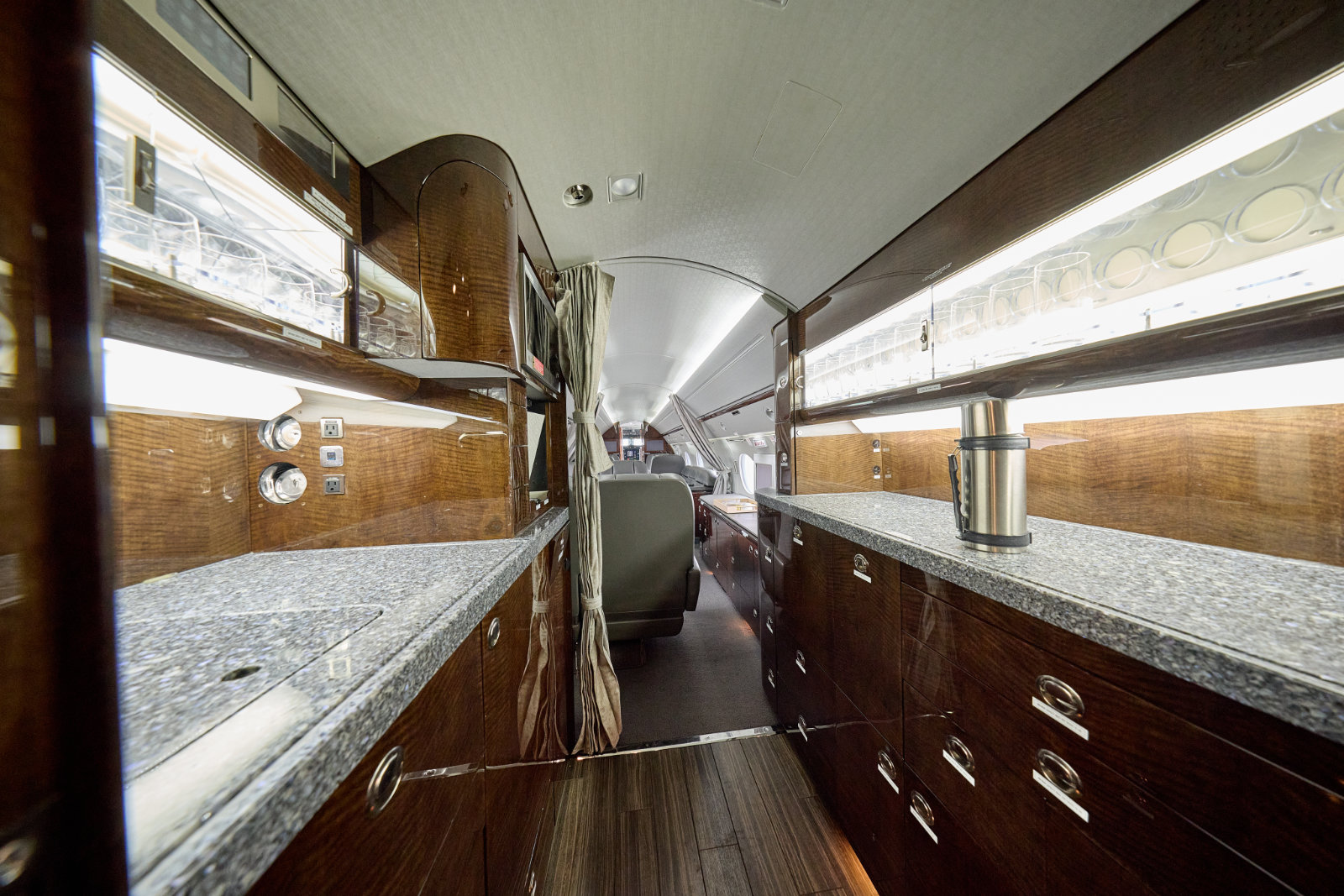

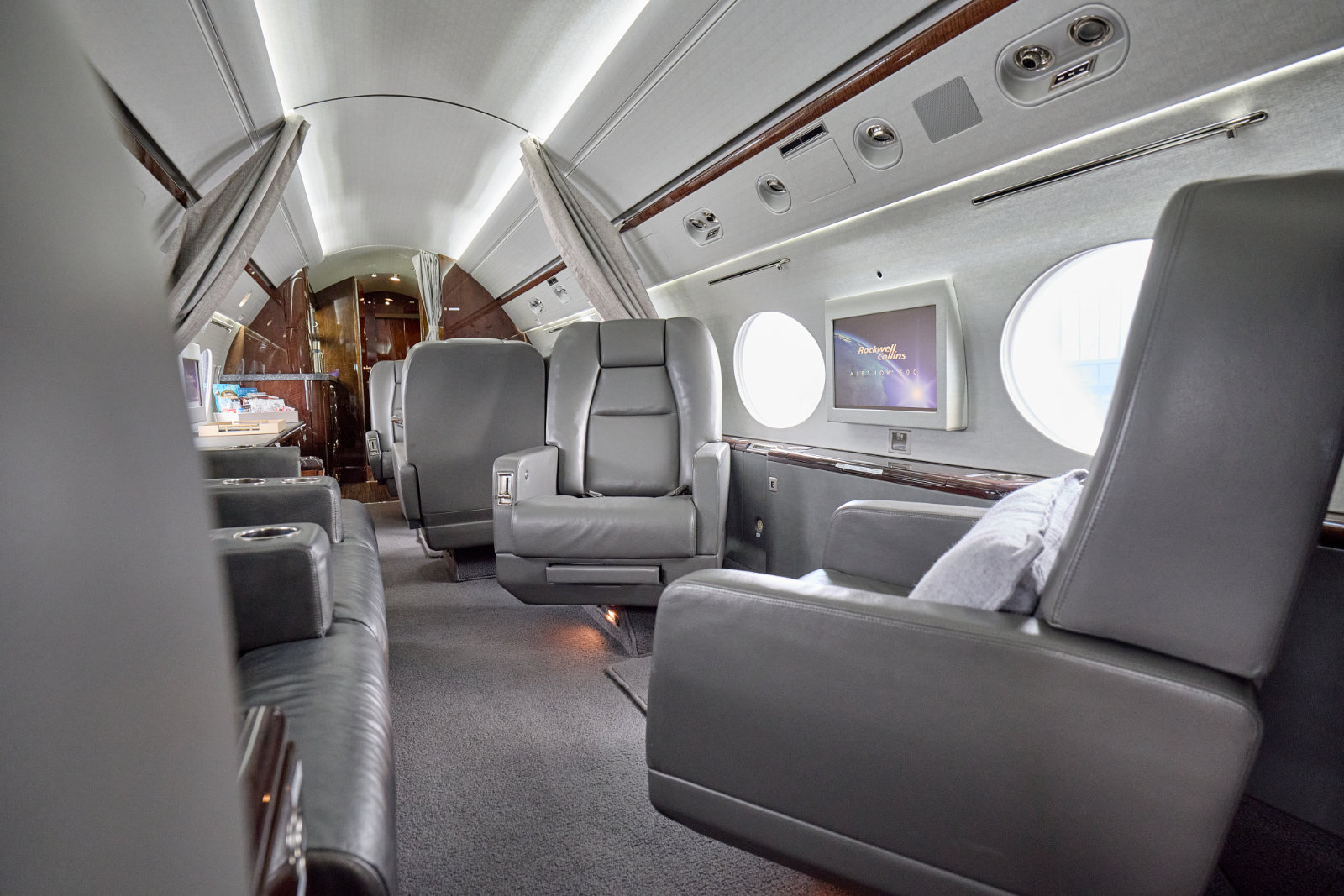

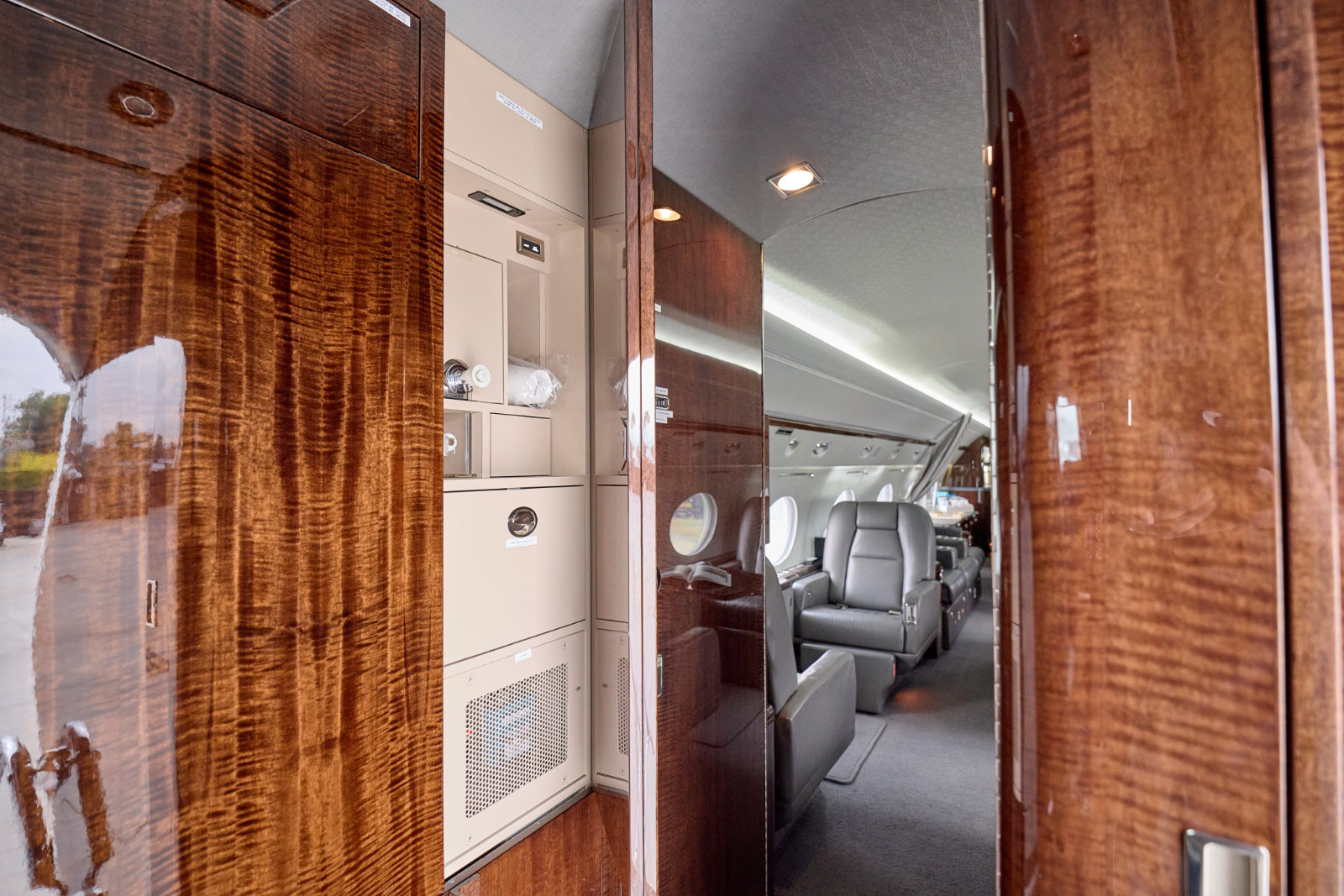

Interior Features
- Neutral Gray Seating for Thirteen (13) Passengers
- Forward 4 place club, Mid-Cabin Left Side 2 Place
Club w/Right Side 2 Place 74-inch berthable Divan, Aft

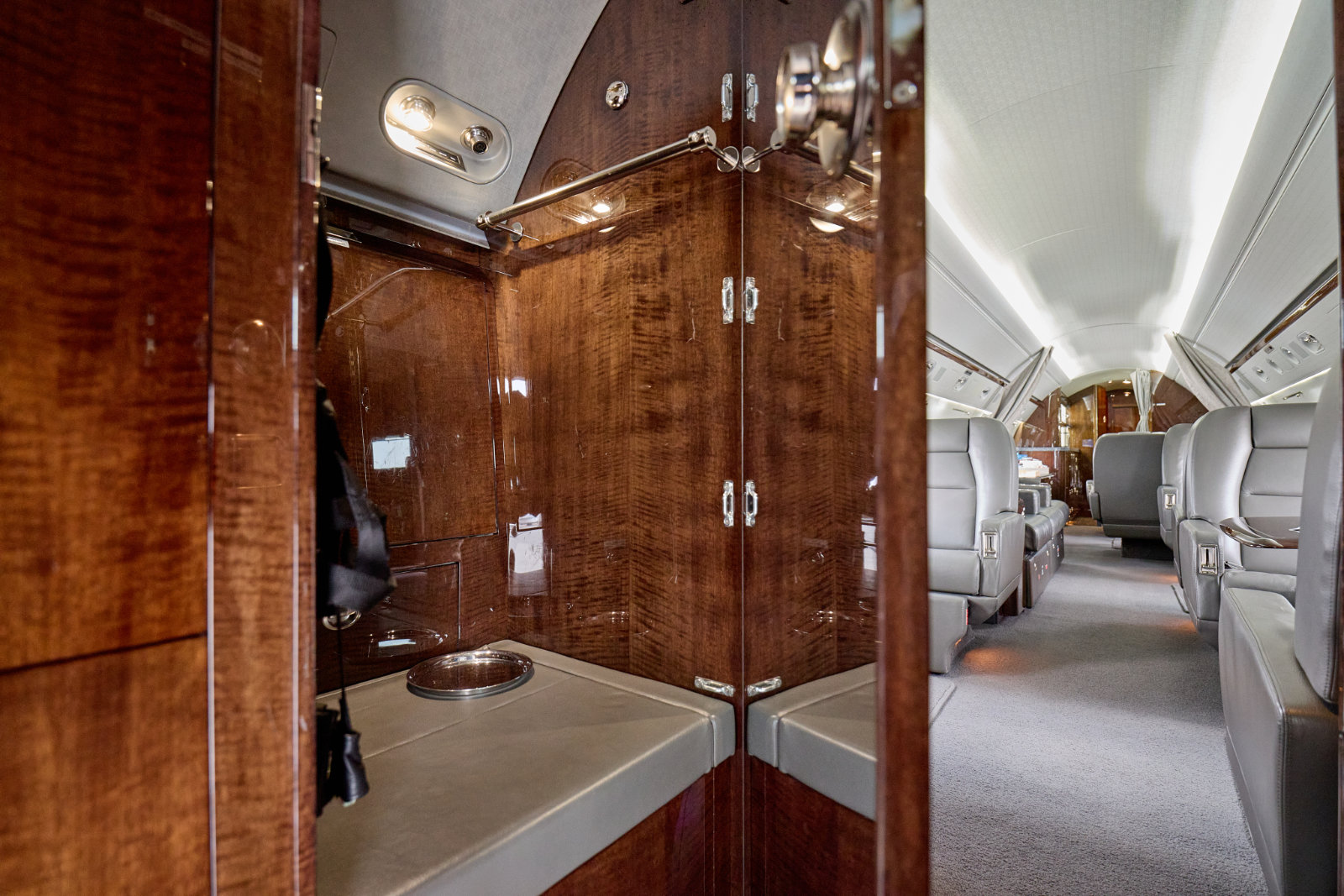

Left side 4 place double club conference group. - Aft Lav
- Forward Crew Lav

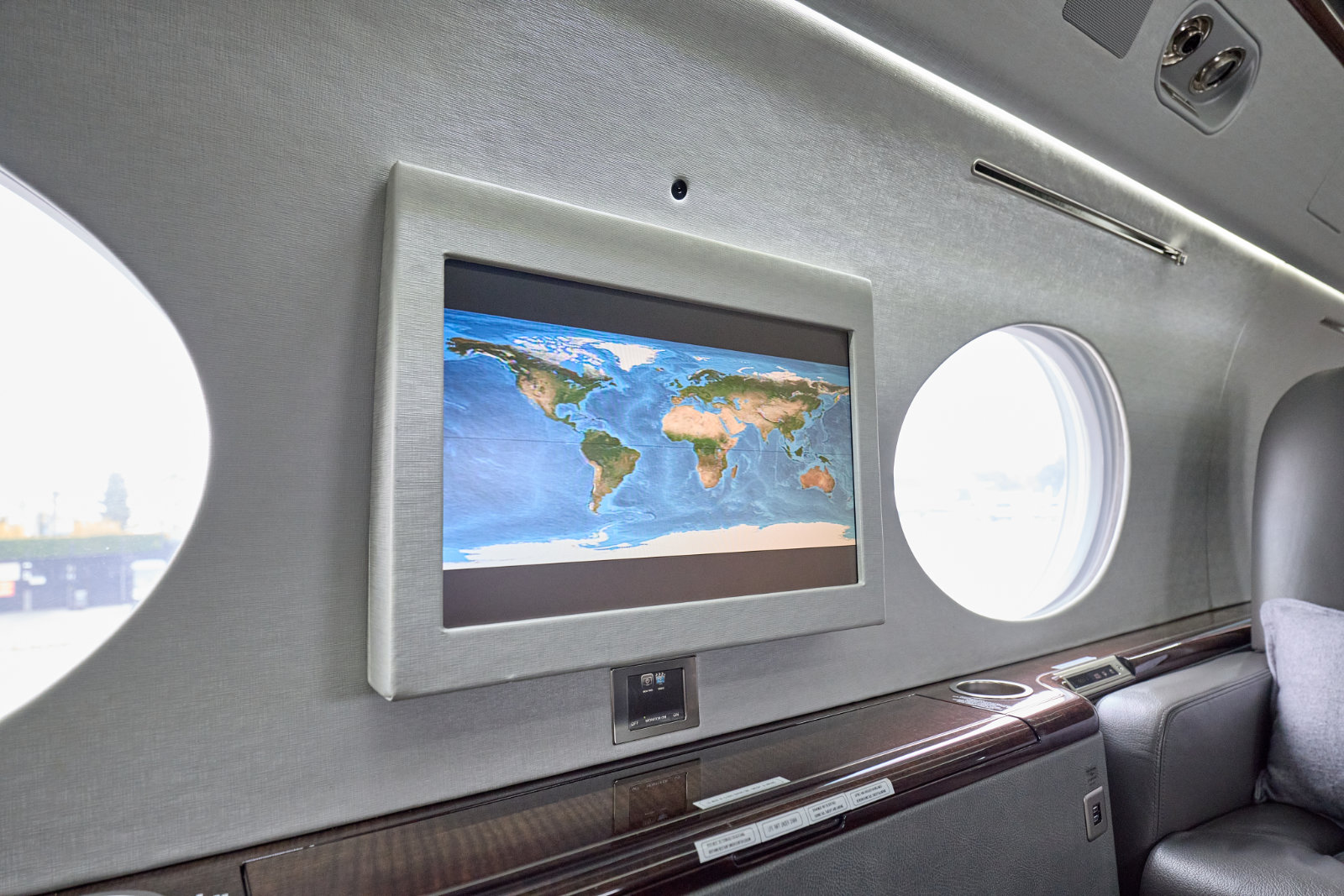

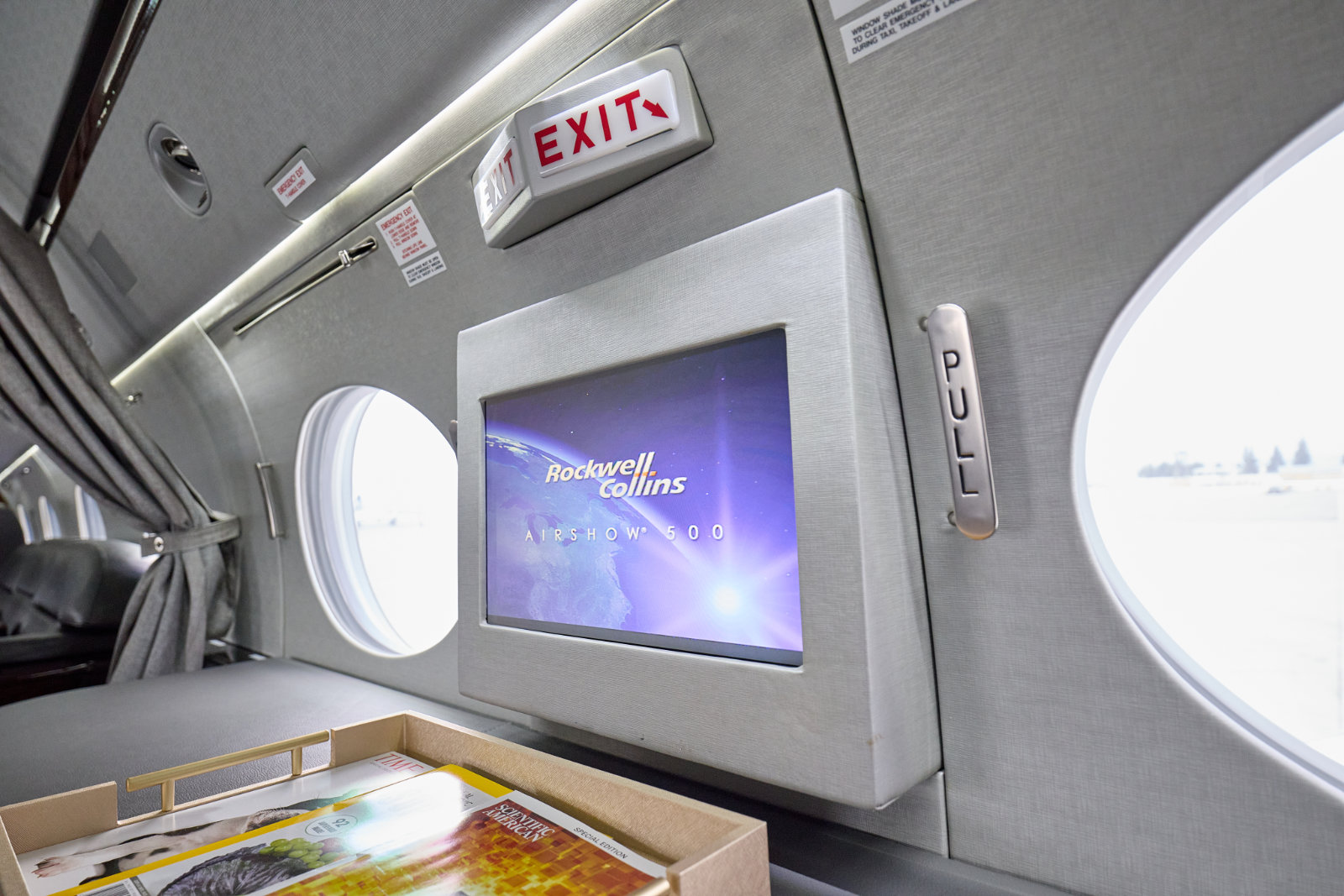

- 7 Cabin Monitors
- 2018 Refurb
